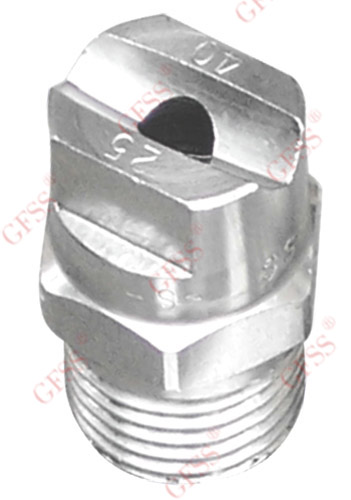

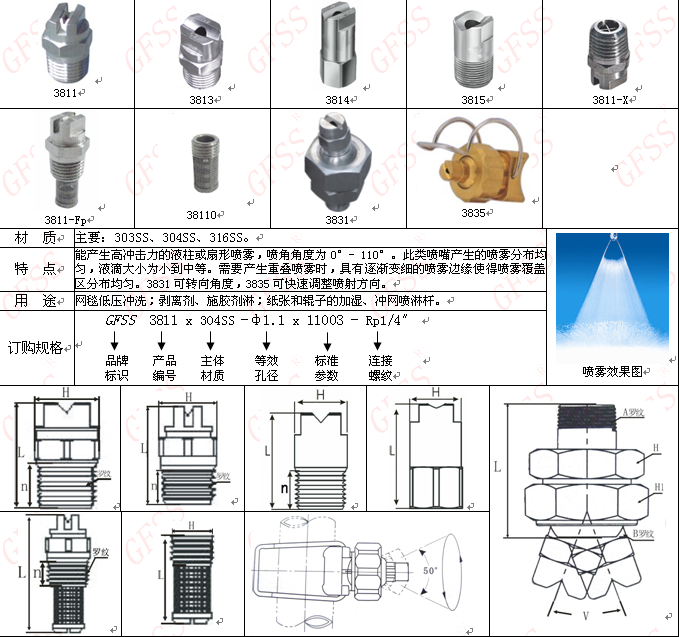

扇形噴嘴3813
|
規 格 參 數 | ||||||||||
|
噴嘴型號 |
螺紋規格 |
射流穩定器 |
A |
B |
L(mm) |
n(mm) |
H(mm) |
H1(mm) |
V(°) |
重量 |
|
3811 |
Rp1/4″ |
|
|
|
23.0 |
10.0 |
14.0 |
|
|
20.0 |
|
3813 |
Rp1/4″ |
|
|
|
23.5 |
10.0 |
14.0 |
|
|
20.0 |
|
3814 |
Rc1/4″ |
|
|
|
31.8 |
10 |
14.3 |
|
|
35.7 |
|
3815 |
Rp1/4″ |
|
|
|
25.4 |
10 |
14.3 |
|
|
21.3 |
|
3811-X |
Rp1/4″ |
有 |
|
|
23.0 |
10.0 |
14.0 |
|
|
20.0 |
|
3811-Fp |
Rp1/4″ |
|
|
|
36.0 |
10.0 |
14.0 |
|
|
30.0 |
|
38110 |
Rp3/8″-24 |
|
|
|
19.0 |
5.0 |
9.0 |
|
|
10.0 |
|
3831 |
1/8×1/8 |
|
1/8 |
1/8 |
32.0 |
|
20.7 |
20.7 |
55° |
56.8 |
|
1/4×1/4 |
|
1/4 |
1/4 |
38.0 |
|
28.7 |
25.4 |
70° |
111.0 | |
|
3/8×1/4 |
|
3/8 |
3/8 |
44.6 |
|
38.1 |
35.1 |
70° |
244.0 | |
|
3/8×3/8 |
|
3/8 |
3/8 |
45.3 |
|
38.1 |
35.1 |
55° |
244.0 | |
|
1/2×3/8 |
|
1/2 |
1/2 |
50.5 |
|
44.5 |
41.4 |
55° |
366.0 | |
|
1/2×1/2 |
|
1/2 |
1/2 |
50.5 |
|
44.5 |
41.4 |
60° |
346.0 | |
|
3/4×1/2 |
|
3/4 |
3/4 |
54.3 |
|
50.8 |
47.8 |
40° |
505.0 | |
|
3/4×3/4 |
|
3/4 |
3/4 |
54.3 |
|
50.8 |
47.8 |
40° |
465.0 | |
|
1×1 |
|
1 |
1 |
76.5 |
|
62.0 |
57.2 |
40° |
967.0 | |
|
備注：1.隨型號與材質不同，外觀外形尺寸可能有若干差異。 2.當需要特殊螺紋時，請注明螺紋形式。 | ||||||||||
